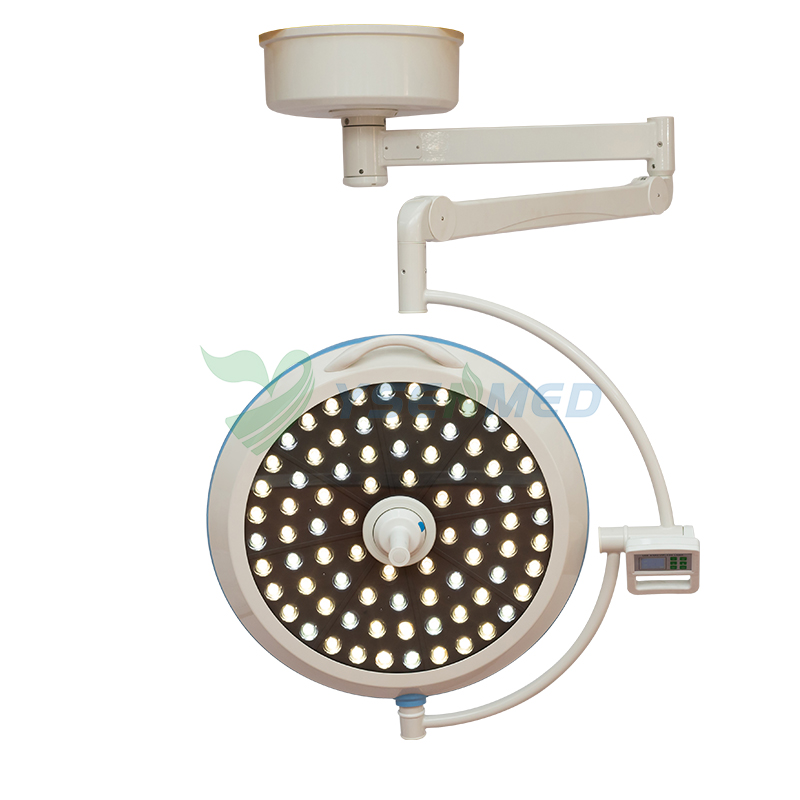

YSOT-LED97 & YSOT-LED93 Series Surgical Lights

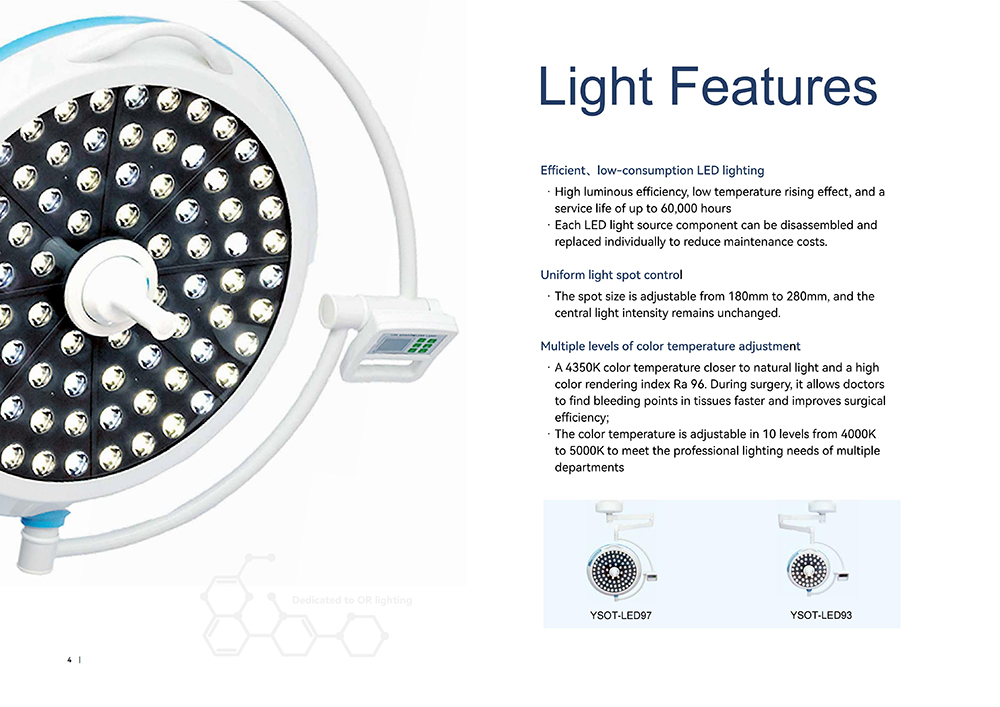

Features
Light Source Type: LED
LED Service Life: Up to 60,000 hours
Maintenance: Individual LED modules are replaceable.
Spot Size Adjustment Range: 180mm to 280mm (with constant central illuminance)
Color Temperature Range: Adjustable in 10 steps from 4000K to 5000K
Standard Color Temperature: 4350K
Color Rendering Index (Ra): ≥96

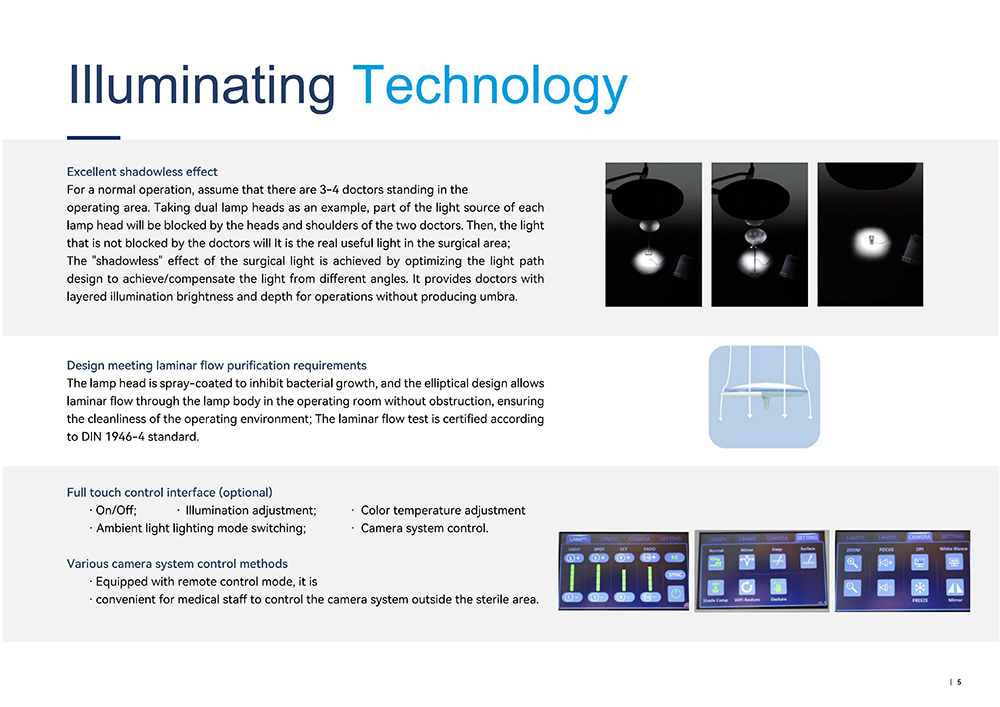

Shadowless Effect: Achieved through multi-point light path design to minimize umbra.
Laminar Flow Compatibility: Designed to not obstruct laminar flow in the OR. Certified per DIN 1946-4 standard.
Bacterial Inhibition: Lamp head has anti-bacterial coating.
Control Interface (Optional): Full touch control panel for On/Off, illuminance adjustment, color temperature adjustment, ambient light mode, and camera control.
Camera Control: Remote control option available for use outside the sterile area.
Compliance Standards: CE, ISO 13485, ISO 9001.
Specifications
Item YSOT-LED97 YSOT-LED93
Illuminance (lux) 160,000 150,000
Number of LED Chips 80 48
Light Field Depth (mm) 1,300 1,200
Color Temperature (K) 40,000-50,000
Color Rendering Index (Ra) 96
Spot Size (mm) 180-280
LED Brand Osram 3030
Brightness Level Adjustment 10 steps
LED Lifespan ≥60,000.00 hours
Lamp Head Material
