Specifications:
|
Type |

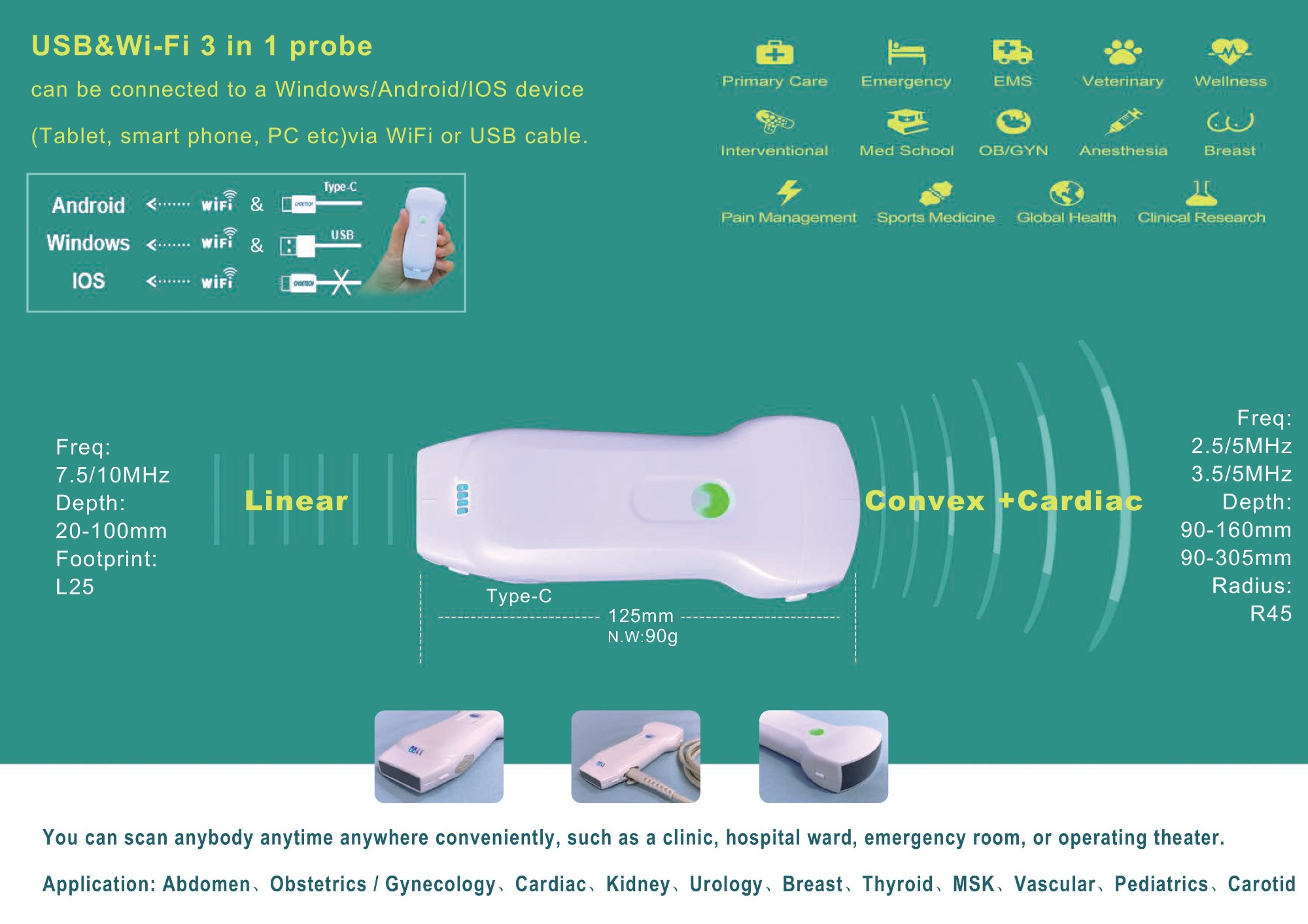

Linear+Convex+Cardiac, dual heads 3 in 1 probe |
|
Frequency |
Convex:3.5/5MHz Linear:7.5/10MHz Cardiac:2.5/5MHz |
|
Depth |
Convex:90~305mm Linear:20~100mm Cardiac:90~160mm |
|
Elements |
128 |
|
Package size |
240(h)x235(w)x100(d)mm |
|
Net weight |
90g |
|
Gross weight |
1.5KGS |
|
Wifi type |
802.11n/20MHz/5G |
|
APP interface |
GN(gain)30-105 |
|
Battery Life |
5~8years |
|
Voltage |
3.8V |
|
Replaceable |
No |
|
Lithium Battery |
2800mAh |
|
Standby |
3~5h |
|
Bootup |
Platform dependent, generally<5second |
|
Adjustment |

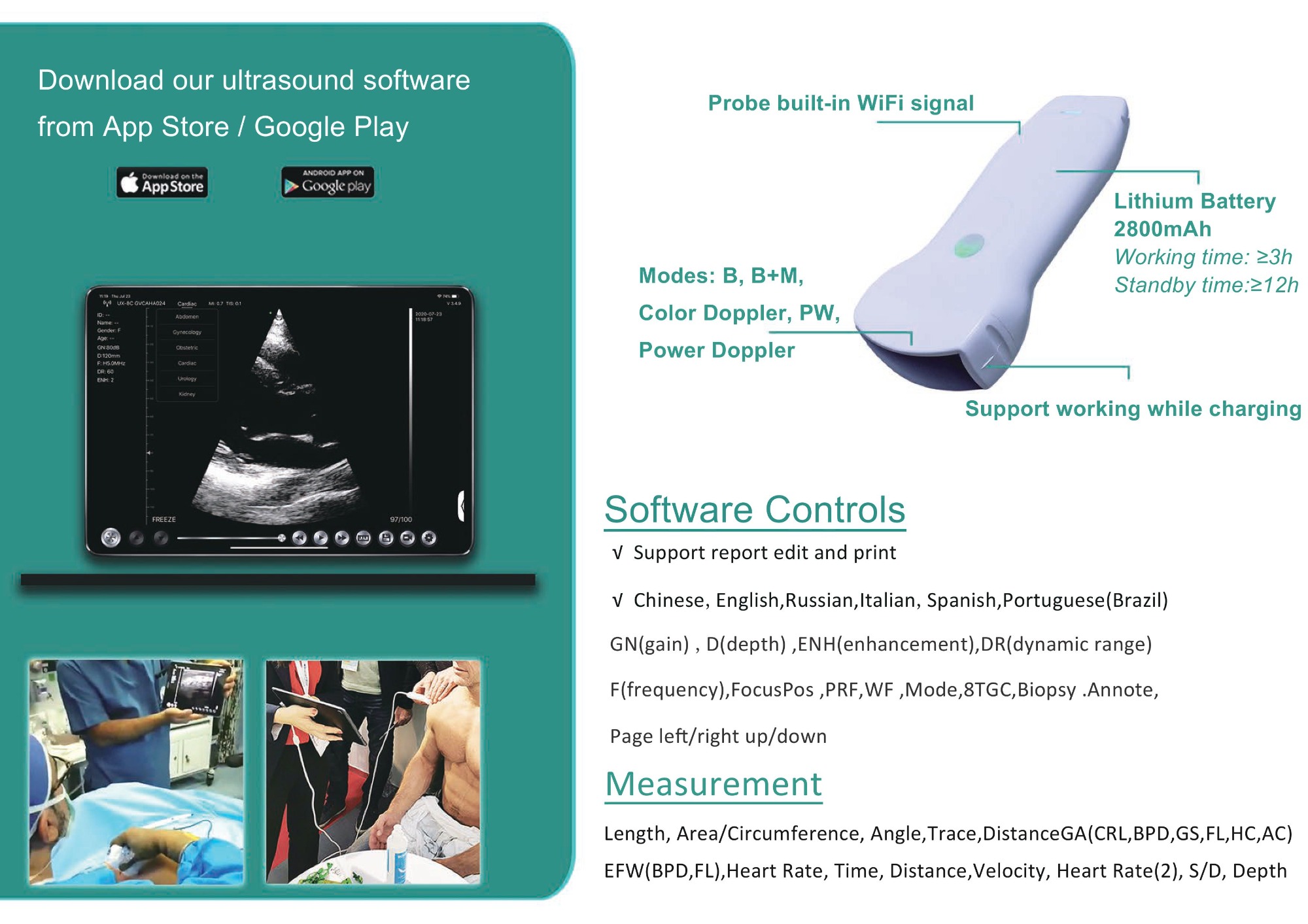

D(depth) ENH(enhancement)0-4 DR(dynamic range) 40-110 F(frequency) Mode B,B+M,B+Color,B+PW,B+PDI 8TGC |
|

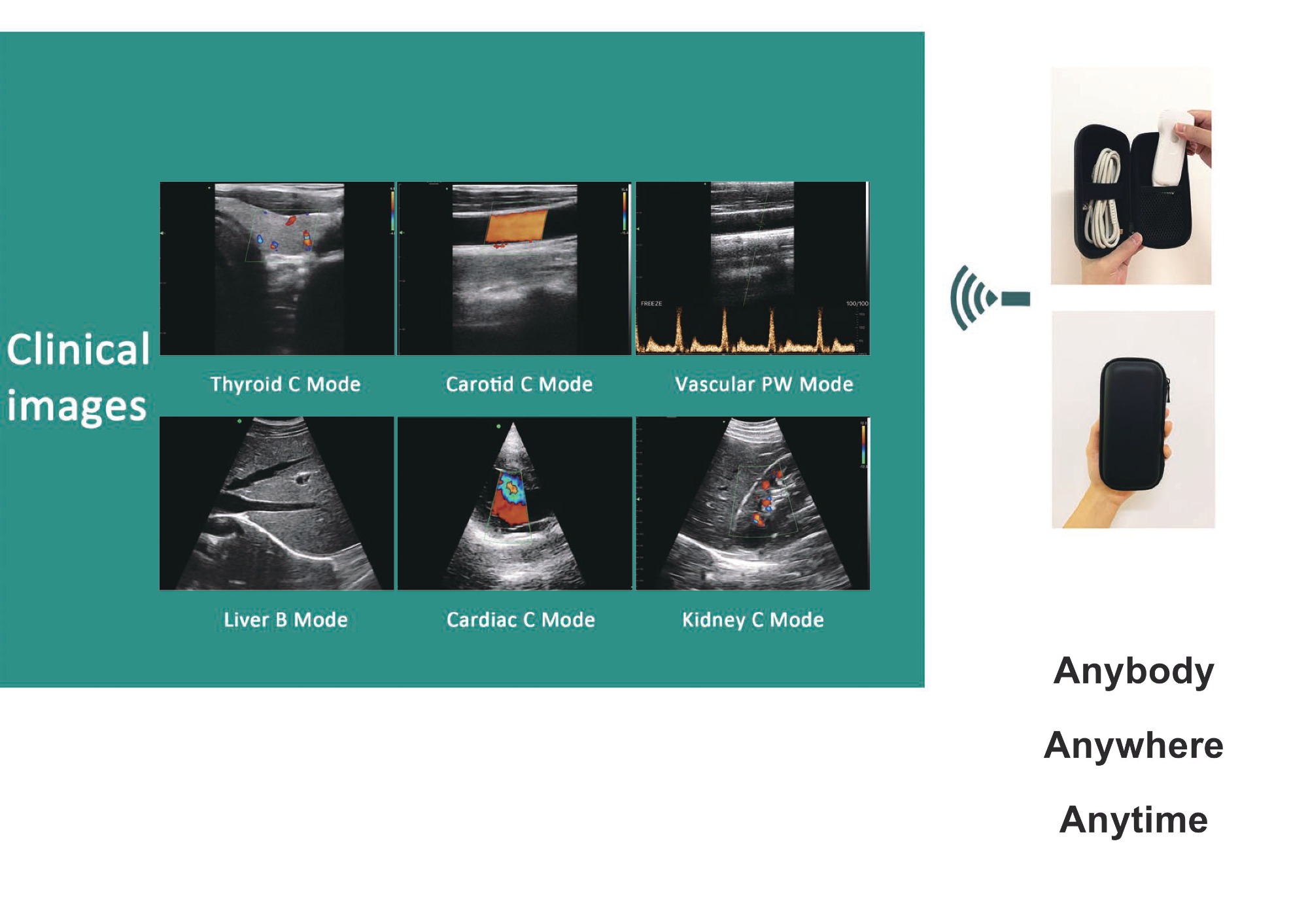

Application |
Convex part:Abdominal, Emergency, Cardiac, Obstetrics/Gynecology, Lung, Kidney, Urology Linear part:Breast, Thyroid, MSK, Superficial, Vascular, Pediatrics, Carotid, Small Parts Cardiac part:Heart |
|
Software |
Android/Windows/IOS Download for free |
