Veterinary Anesthesia System YSAV-AMV5

Model: YSAV-AMV5
  • ModelYSAV-AMV5
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • -
    +
    Categories:Veterinary Anesthesia Machine
    Share:
    Description Get Price Review

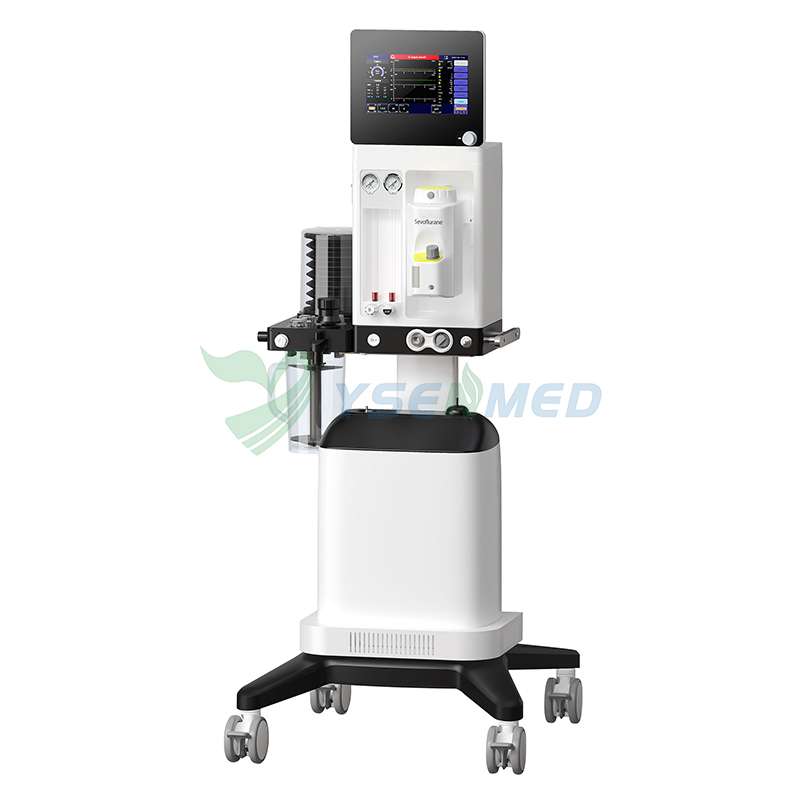

    Veterinary Anesthesia System/Vet Anesthesia Machine
    Model:YSAV-AMV5
    YSAV-AMV5 veterinary anesthesia system adheres to the concept of making animal anesthesia safer, simpler, and more reliable, and is committed to leading new experiences in animal anesthesia. Now available as a veterinary anesthesia machine for sale, it is suitable for clinical surgeries in dogs, cats, pigs, monkeys, rodents, reptiles, birds, and more.

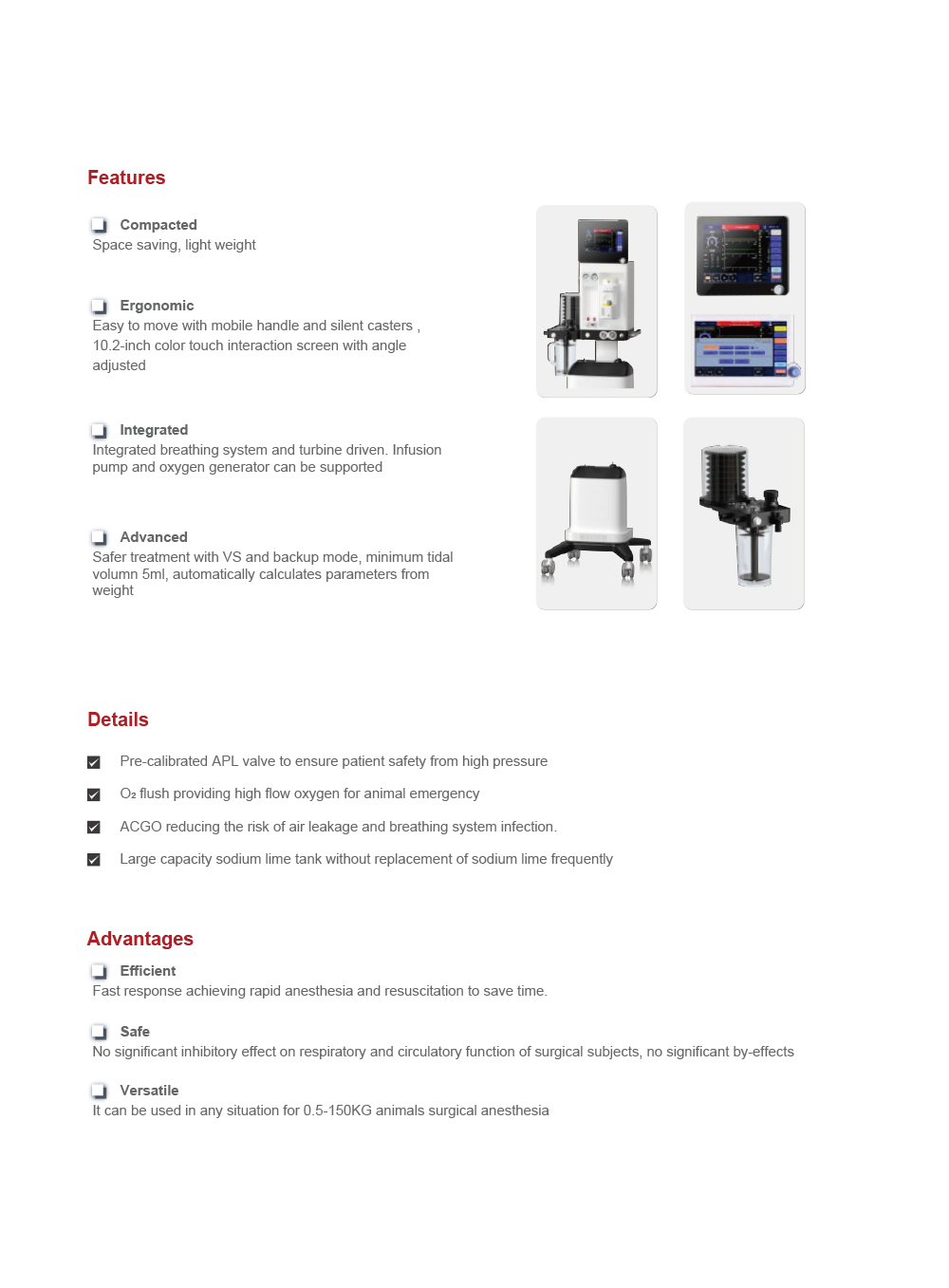

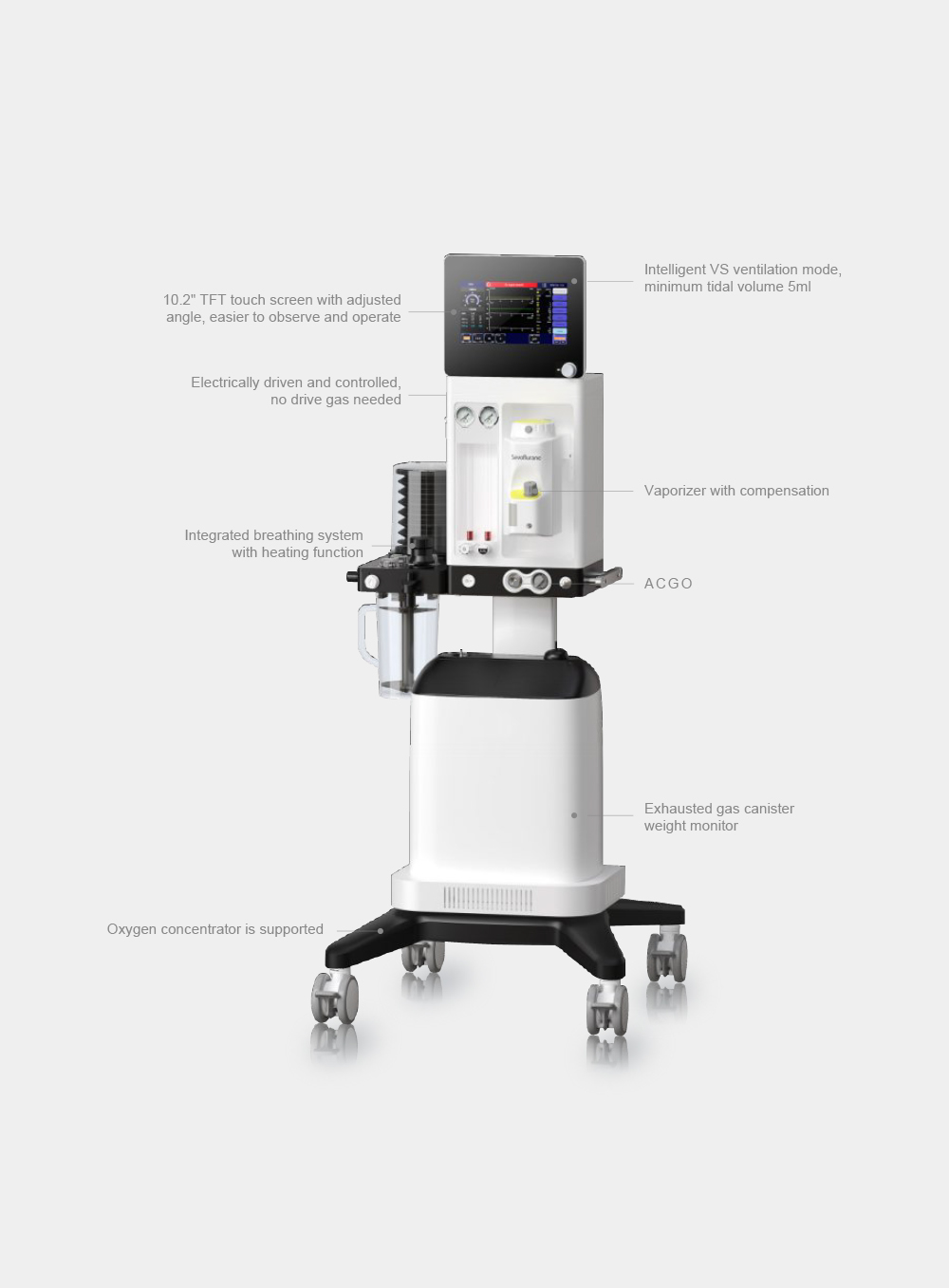

    Features
    Compacted
    Space saving, light weight
    Ergonomic
    Easy to move with mobile handle and silent casters10.2-inch color touch interaction screen with angle adjusted
    Integrated
    Integrated breathing system and turbine driven. Infusion pump and oxygen generator can be supported
    Advanced
    Safer treatment with VS and backup mode, minimum tidal volumn 5ml, automatically calculates parameters from weight
    Details
    Pre-calibrated APL valve to ensure patient safety from high pressure
    O2 flush providing high flow oxygen for animal emergency
    ACGO reducing the risk of air leakage and breathing system infection
    Large capacity sodium lime tank without replacement of sodium lime frequently
    Advantages
    Efficient
    Fast response achieving rapid anesthesia and resuscitation to save time.
    Safe
    No significant inhibitory effect on respiratory and circulatory function of surgical subjects, no significant by-effects.
    Versatile
    It can be used in any situation for 0.5-150KG animals surgical anesthesia.

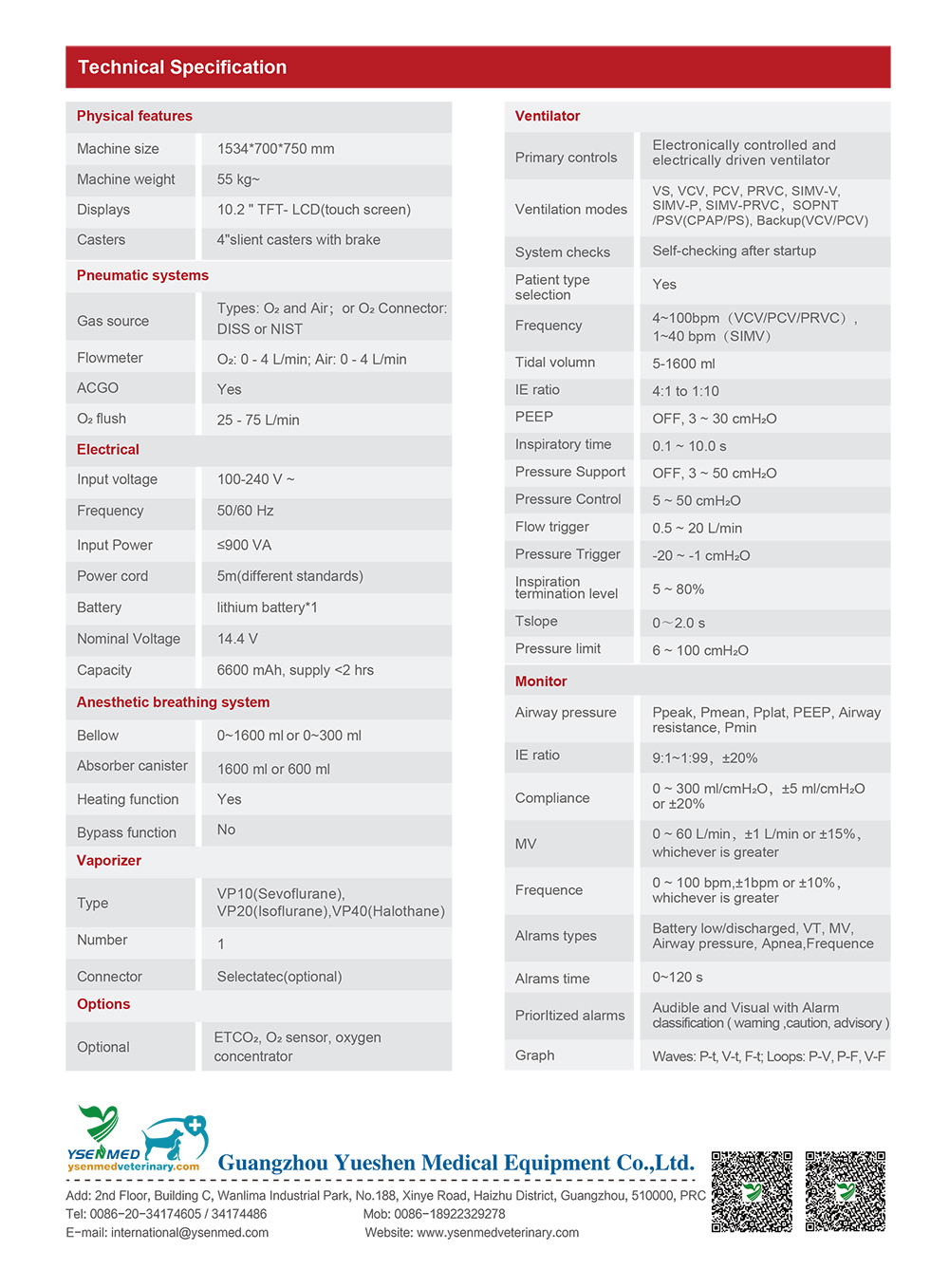

    Specification
    Physical features
    Machine size 1534*700*750 mm
    Machine weight 55 kg
    Displays 10.2 " TFT- LCD(touch screen)
    Casters 4"slient casters with brake
    Pneumatic systems
    Gas source Types: Oz and Air; or O₂ Connector: DISS or NIST
    Flowmeter Oz:0-4 L/min; Air:0-4 L/min
    ACGO Yes
    O₂ flush 25 -75 L/min
    Electrical
    Input voltage 100-240V
    Frequency 50/60 Hz
    Input Power ≤900 VA
    Power cord 5m(different standards)
    Battery lithium battery*1
    Nominal Voltage 14.4 V
    Capacity 6600 mAh, supply <2 hrs
    Anesthetic breathing system
    Bellow 0~1600 ml or 0~300 ml
    Absorber canister 1600 ml or 600 ml
    Heating function Yes
    Bypass function NO
    Vaporizer
    Type VP10(Sevoflurane),VP20(lsoflurane),VP40(Halothane)
    Number 1
    Connector Selectatec(optional)
    Options
    Optional ETCO2, O2 sensor, oxygen concentrator
