Electrocardiograph/6 Channel Portable ECG Machine YSECG-06L

Model: YSECG-06L
  • ModelYSECG-06L
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou,China
  • ShippingAir/Sea
  • -
    +
    Categories:ECG Machine
    Share:
    Description Get Price Review

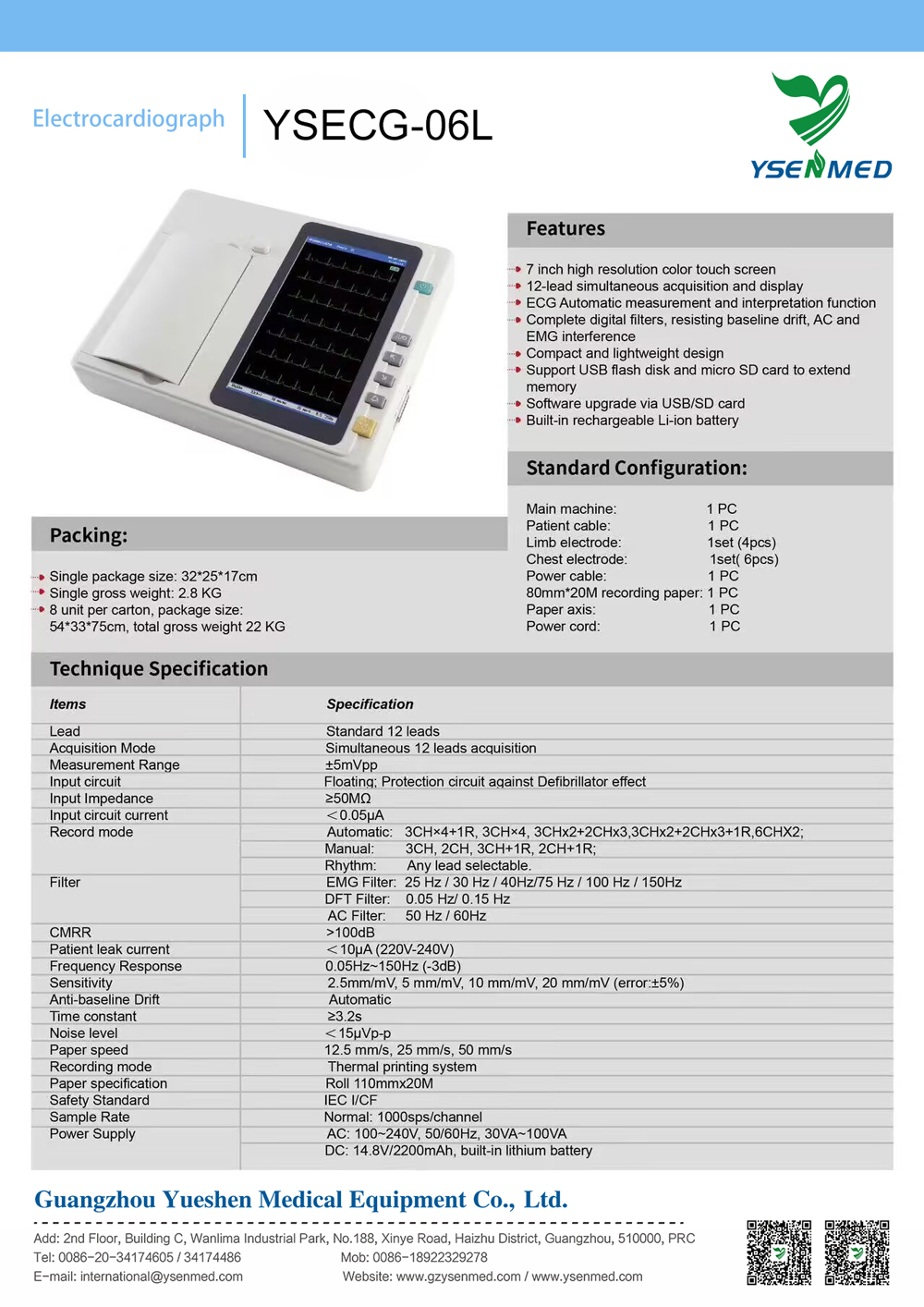

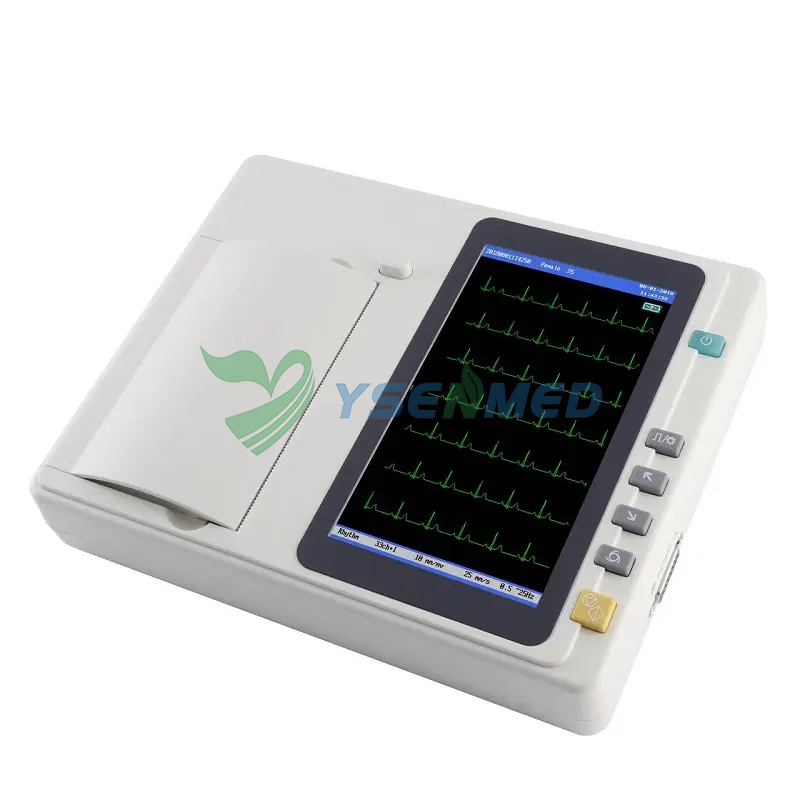

    Electrocardiograph/6 Channel Portable ECG Machine
    Model:YSECG-06L
    Features

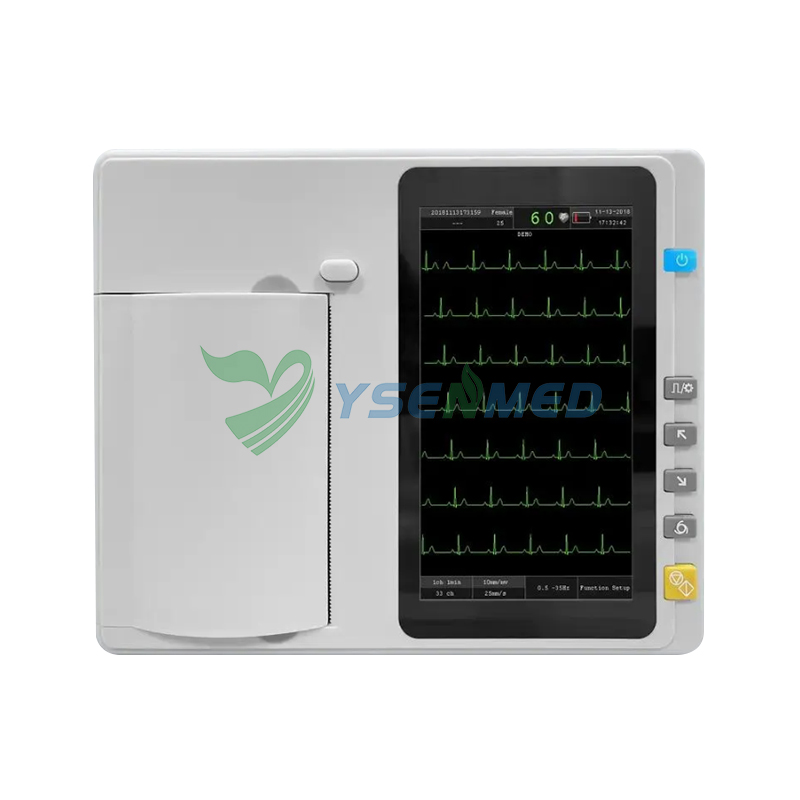

    7 inch high resolution color touch screen
    12-lead simultaneous acquisition and display
    ECG Automatic measurement and interpretation function
    Complete digital filters, resisting baseline drift, AC and EMG interference
    Compact and lightweight design

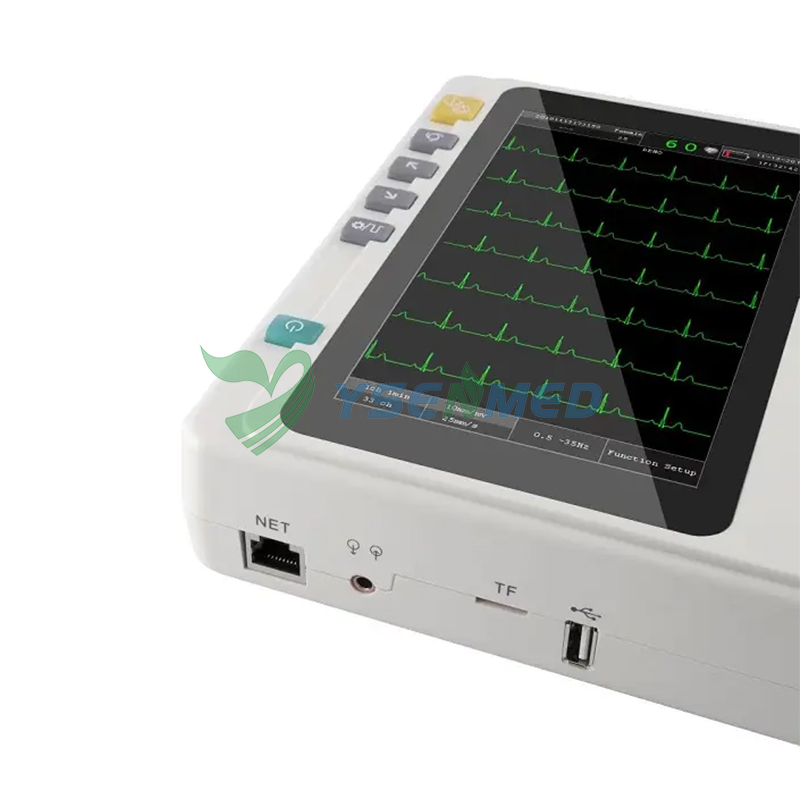

    Support USB flash disk and micro SD card to extend memory
    Software upgrade via USB/SD card
    Built-in rechargeable Li-ion battery
    Standard Configuration
    Main machine: 1 PC

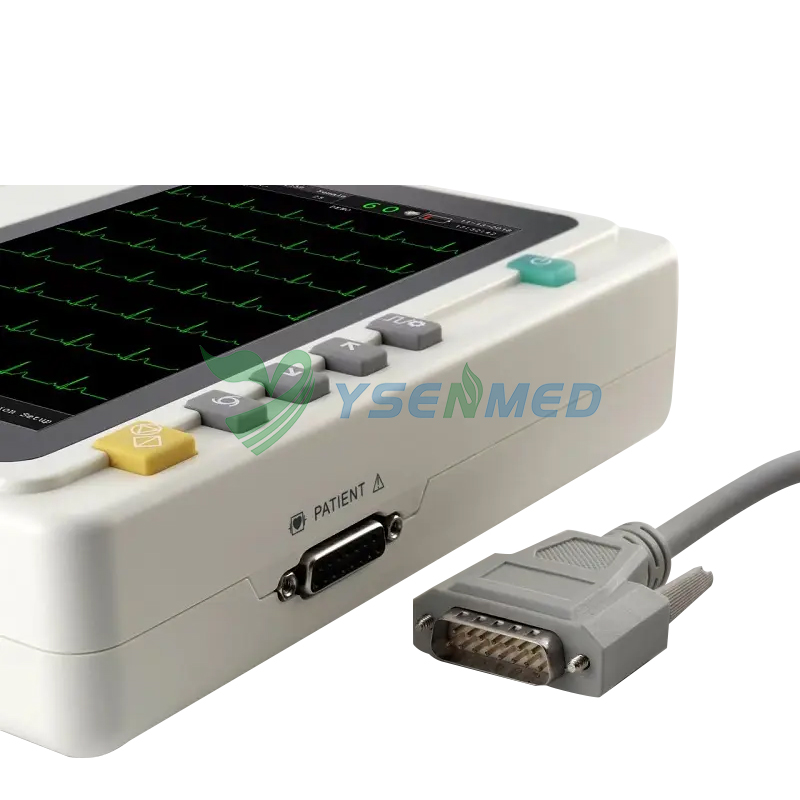

    Patient cable: 1 PC
    Limb electrode: 1set (4pcs)
    Chest electrode: 1set (6pcs)
    Power cable: 1 PC
    80mm×20M recording paper: 1 PC
    Paper axis: 1 PC
    Power cord: 1 PC
    Packing
    Single package size: 32×25×17cm
    Single gross weight: 2.8 KG
    8 unit per carton, package size: 54×33×75cm, total gross weight 22 KG
    Specification
    Items Specification
    Lead Standard 12 leads
    Acquisition Mode Simultaneous 12 leads acquisition
    Measurement Range ±5mVpp
    Input circuit Floating; Protection circuit against Defibrillator effect
    Input Impedance ≥50MΩ
    Input circuit current <0.05μA
    Record mode Automatic: 3CHx4+1R, 3CHx4, 3CHx2+2CHx3,
    3CHx2+2CHx3+1R, 6CHX2
    Manual: 3CH, 2CH, 3CH+1R, 2CH+1R;
    Any lead selectable.
    Filter EMG Filter: 25Hz/30Hz/40Hz/75 Hz/100Hz/150Hz
    DFT Filter: 0.05 Hz/ 0.15 Hz
    AC Filter: 50 Hz/60Hz
    CMRR >100dB
    Patient leak current <10μA(220V-240V)
    Frequency Response 0.05Hz~150Hz(-3dB)
    Sensitivity 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV(error: ±5%)
    Anti-baseline Drift Automatic
    Time constant ≥3.2s
    Noise level <15μVp-p
    Paper speed 12.5 mm/s, 25 mm/s, 50 mm/s
    Recording mode Thermal printing system
    Paper specification Roll 110mmx20M
    Safety Standard IEC I/CF
    Sample Rate Normal: 1000sps/channel

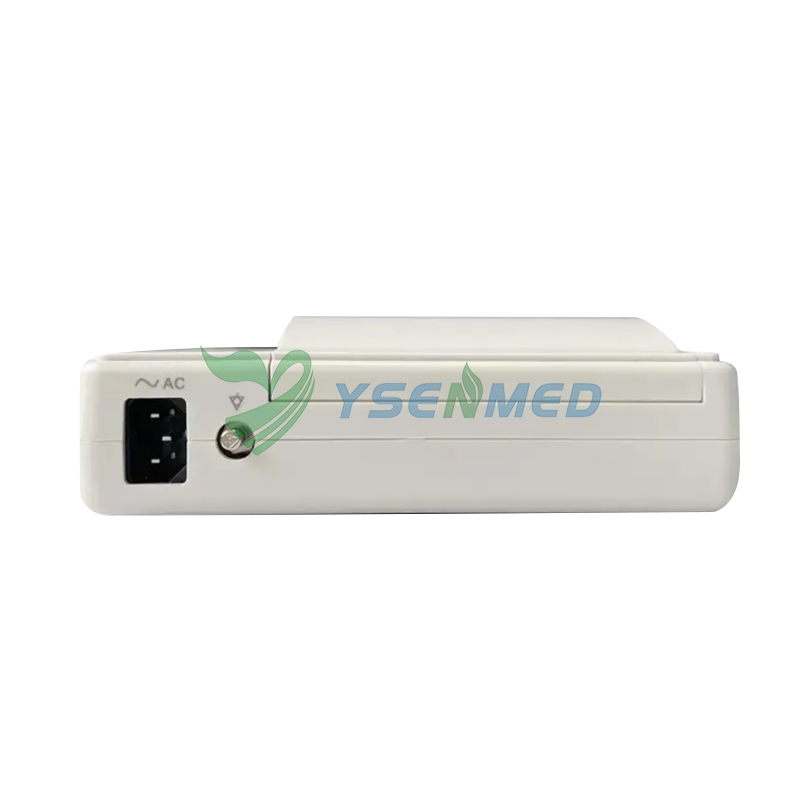

    Power Supply AC: 100~240V, 50/60Hz, 30VA~100VA
    DC: 14.8V/2200mAh, built-in lithium battery
