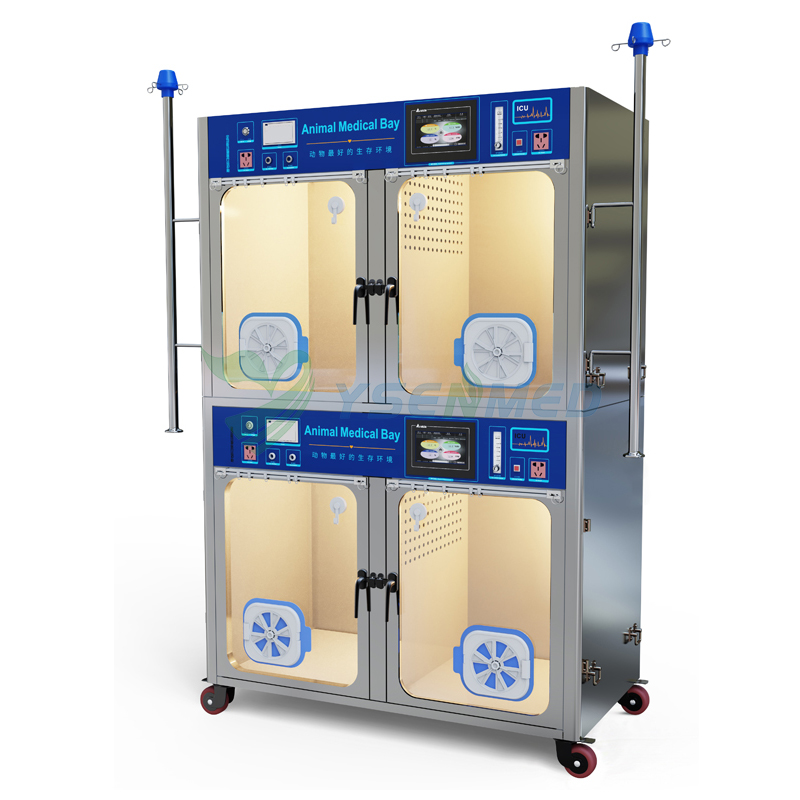

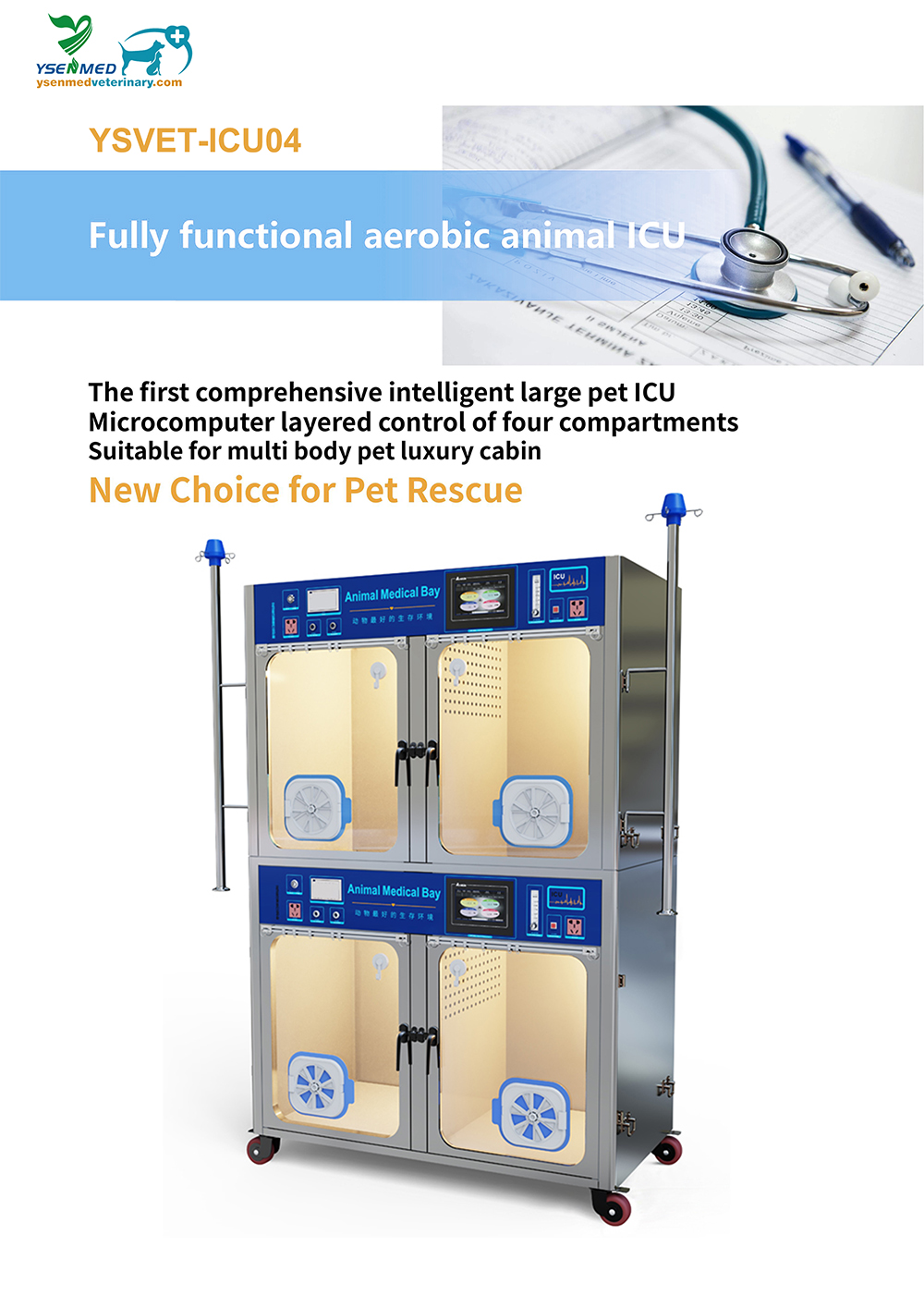

Fully functional aerobic animal ICU/Dual unit pet ICU
Model:YSVET-ICU04
The first comprehensive intelligent large pet ICU
Microcomputer layered control of four compartments
Suitable for multi body pet luxury cabin
6 lifeline functions
High sealing
Rapid oxygen supply
Natural phototherapy
Flexible Space
continuous monitoring
Atomization care

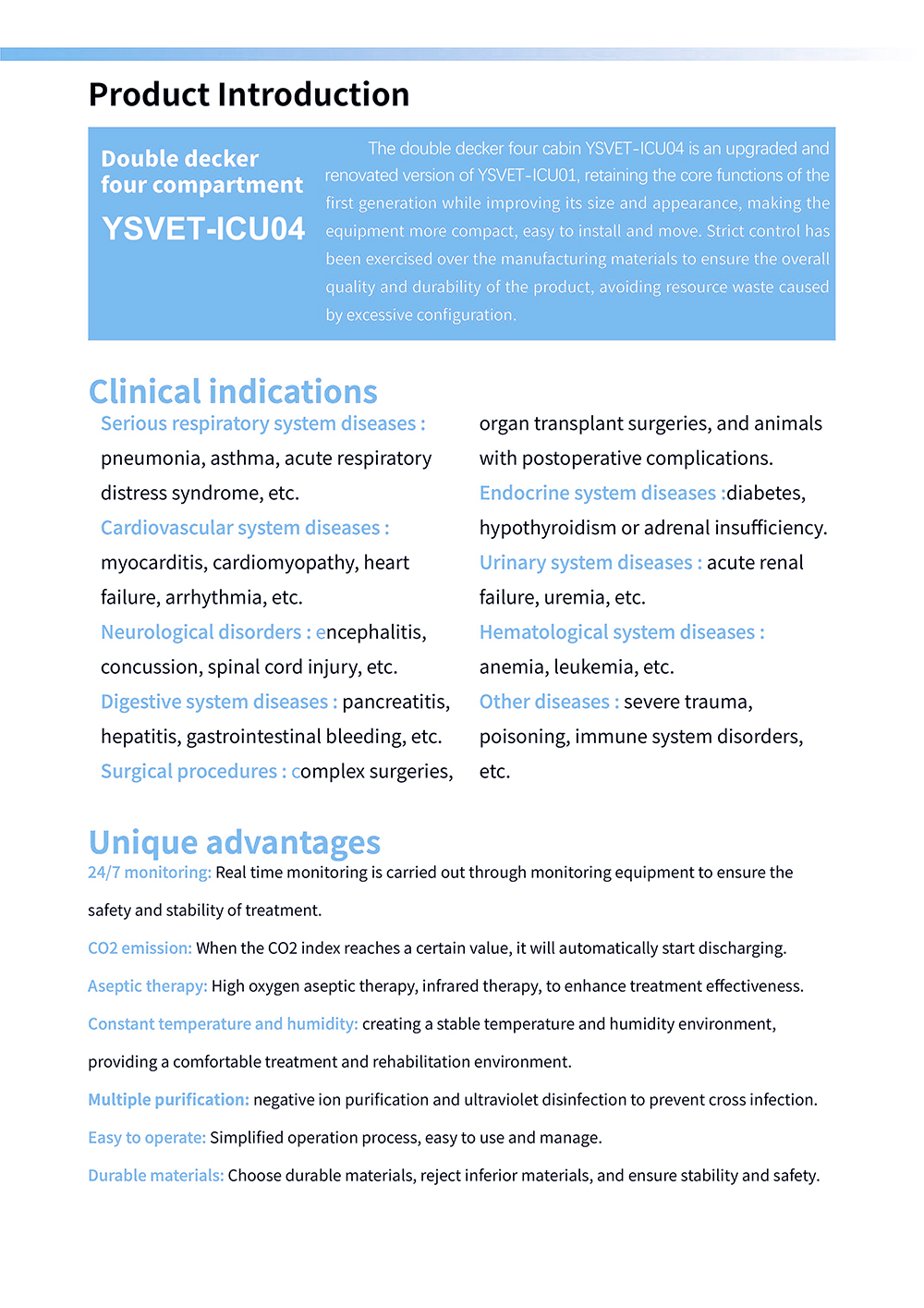

Product introduction
The double decker four cabin YSVET-ICU04 is an upgraded and renovated version of YSVET-ICU01, retaining the core functions of the first generation while improving its size and appearance, making the equipment more compact, easy to install and move. Strict control has been exercised over the manufacturing materials to ensure the overall quality and durability of the product, avoiding resource waste caused by excessive configuration.
Clinical indications
Serious respiratory system diseases: pneumonia,asthma, acute respiratory
distress syndrome, etc.
Cardiovascular system diseases: myocarditis, cardiomyopathy, heart failure, arrhythmia, etc.
Neurological disorders: encephalitis, concussion, spinal cord injury, etc.
Digestive system diseases: pancreatitis, hepatitis, gastrointestinal bleeding, etc.
Surgical procedures: complex surgeries, organ transplant surgeries, and animals with postoperative complications.
Endocrine system diseases: diabetes, hypothyroidism or adrenal insufficiency.
Urinary system diseases: acute renal failure, uremia, etc.
Hematological system diseases: anemia, leukemia, etc.
Other diseases: severe trauma, poisoning, immune system disorders, etc.
Unique advantages
24/7 monitoring: Real time monitoring is carried out through monitoring equipment to ensure the safety and stability of treatment.
CO2 emission: When the CO2 index reaches a certain value, it will automatically start discharging.
Aseptic therapy: High oxygen aseptic therapy, infrared therapy, to enhance treatment effectiveness.
Constant temperature and humidity: creating a stable temperature and humidity environment, providing a comfortable treatment and rehabilitation environment.
Multiple purification: negative ion purification and ultraviolet disinfection to prevent cross infection.
Easy to operate: Simplified operation process, easy to use and manage.
Durable materials: choose durable materials, reject inferior materials, and ensure stability and safety.

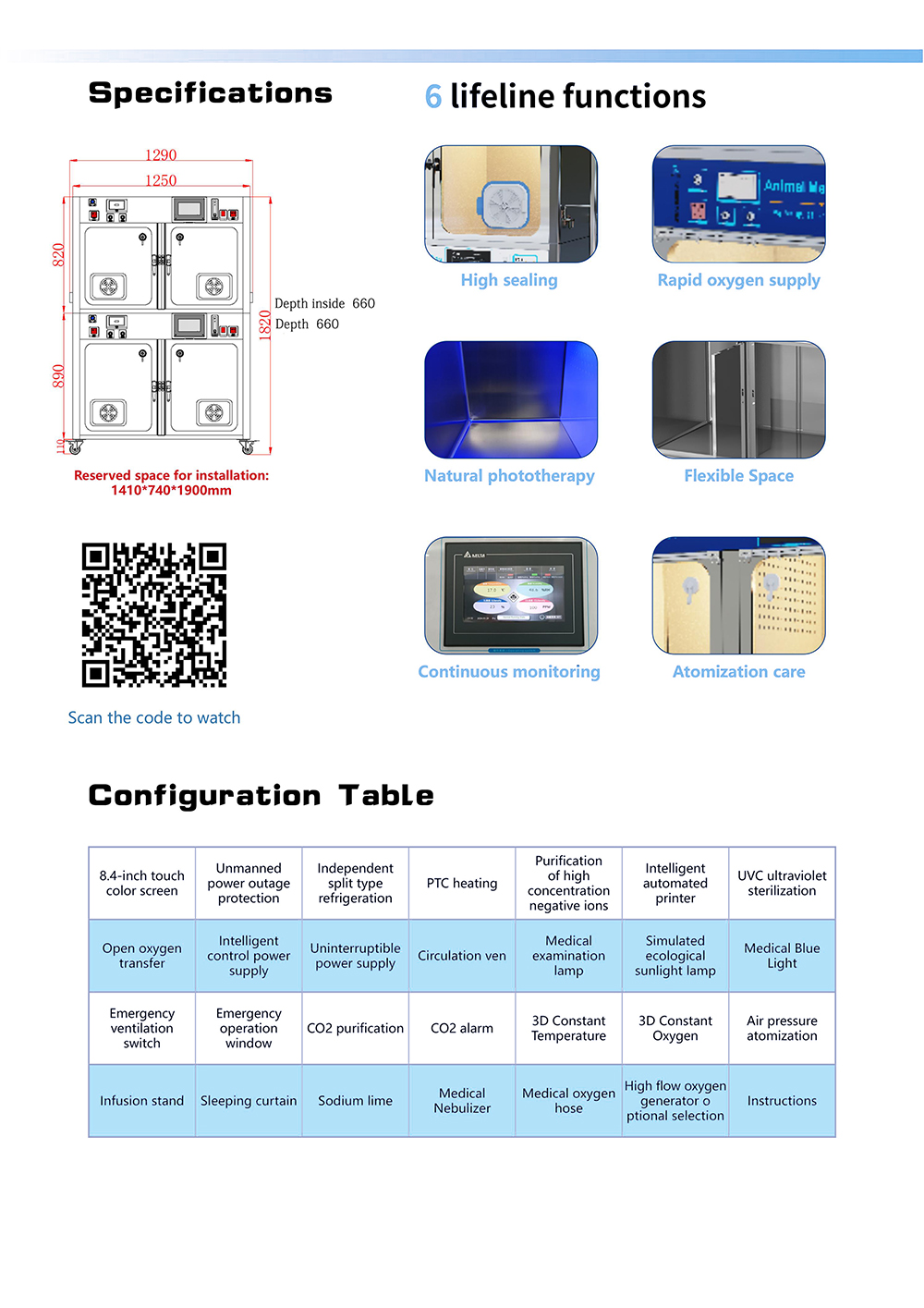

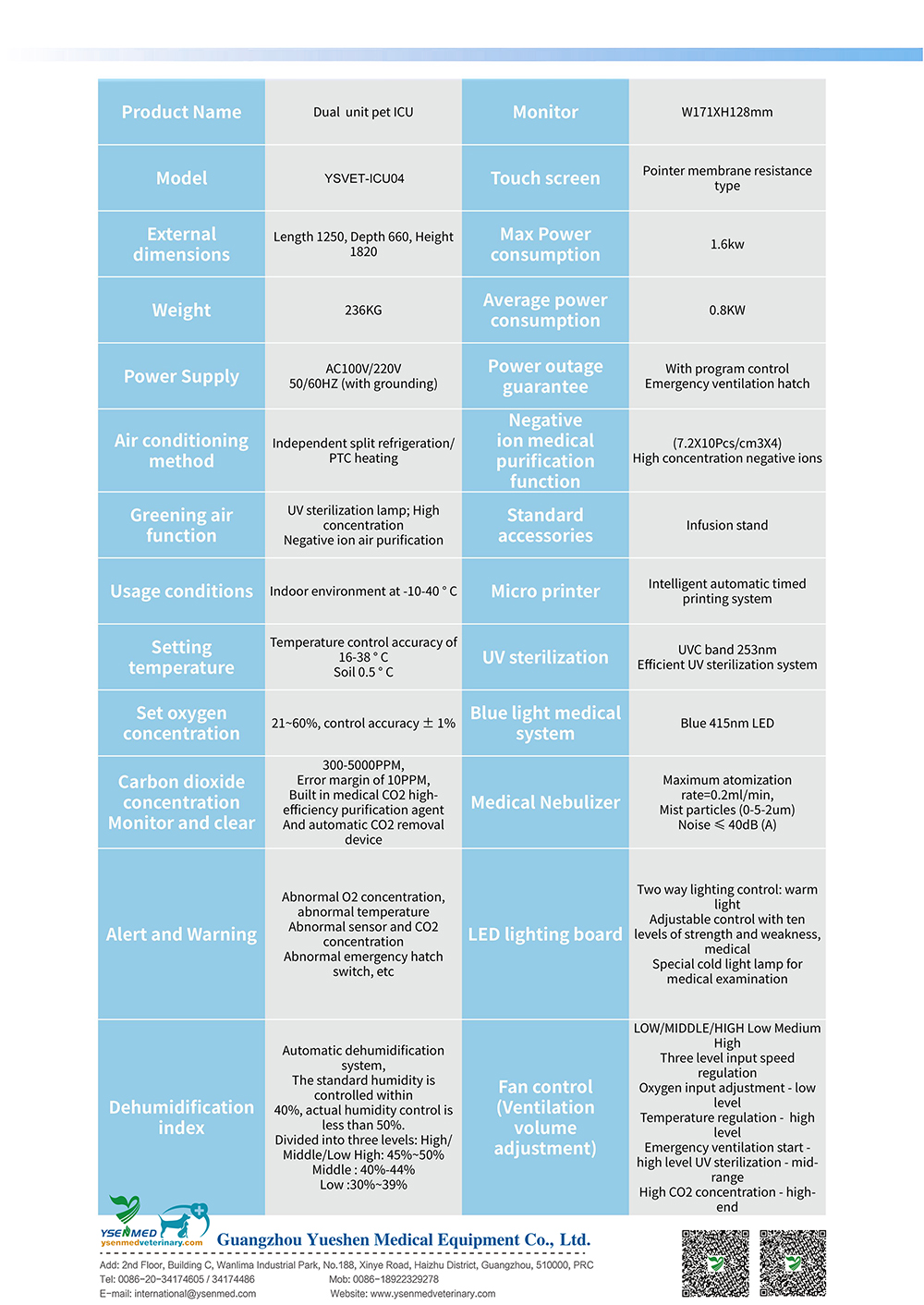

Parameters
Product Name Dual unit pet ICU
Model YSVET-ICU04
External dimensions Length 1250, Depth 660, Height 1820
Weight 236KG
Power supply AC100V/220V
50/60HZ(with grounding)
Air conditioning method Independent split refrigeration/PTC heating
Greening air function UV sterilization lamp; High
Concentration Negative ion air purification
Usage conditions Indoor environment at -10-40°C
Setting temperature Temperature control accuracy of 16-38°C
Soil 0.5°C
Set oxygen concentration 21~60%, control accuracy±1%
Carbon dioxide concentration
Monitor and clear 300-5000PPM, Error margin of 10PPM, Built in medical CO2 high-efficiency purification agent And automatic CO2 removal device
Alert and Warning Abnormal O2 concentration, abnormal temperature
Abnormal sensor and CO2 concentration
Abnormal emergency hatch switch, etc
Dehumidification index Automatic dehumidification system, The standard humidity is controlled within 40%, actual humidity control is less than 50%.
Divided into three levels: High/Middle/
Low High: 45%~50%
Middle: 40%-44%
Low: 30%~39%
Monitor W171×H128mm
Touch screen Pointer membrane resistance type
Max Power consumption 1.6kw
Average power consumption 0.8KW
Power outage guarantee With program control Emergency ventilation hatch
Negative ion medical purification function (7.2×10Pcs/cm3×4)
High concentration negative ions
Standard accessories Infusion stand
Micro printer Intelligent automatic timed printing system
UV sterilization UVC band 253nm
Efficient UV sterilization system
Blue light medical system Blue 415nm LED
Medical Nebulizer Maximum atomization rate=0.2m//min,
Mist particles (0-5-2um)
Noise ≤ 40dB (A)
LED lighting board Two way lighting control: warm light
Adjustable control with ten levels of strength and weakness medical
Special cold light lamp for medical examination
Fan control(Ventilation volume
adjustment) LOW/MIDDLE/HIGH Low Medium High
Three level input speed regulation
Oxygen input adjustment-low level
Temperature regulation-high level
Emergency ventilation start-high level UV sterilization-mid-range
