* The motherboard uses semiconductor components of international famous brands such as Samsung of Korea, Rubycon of Japan, KIA and HTC, with more stable performance.
* Small shape, light weight, easy to carry and can take pictures with one hand.
* Microcomputer IC program, high control precision, simple operation, one-key setting before taking pictures.
* High power battery, constant discharge, could make continuous shooting 200 times when fully charged.
* Multiple imaging methods of film, sensor and scanner can be selected arbitrarily.
* Micro-focus tube, the focal size is 0.4mm, the radiation is concentrated, the scattering ray is less, and the image is more clear.
* Compared with ordinary X-ray machines, the DC high-frequency portable X-ray machine is free from the unstable interference of external AC power, the output ray is stable when shooting, and the image is much better.

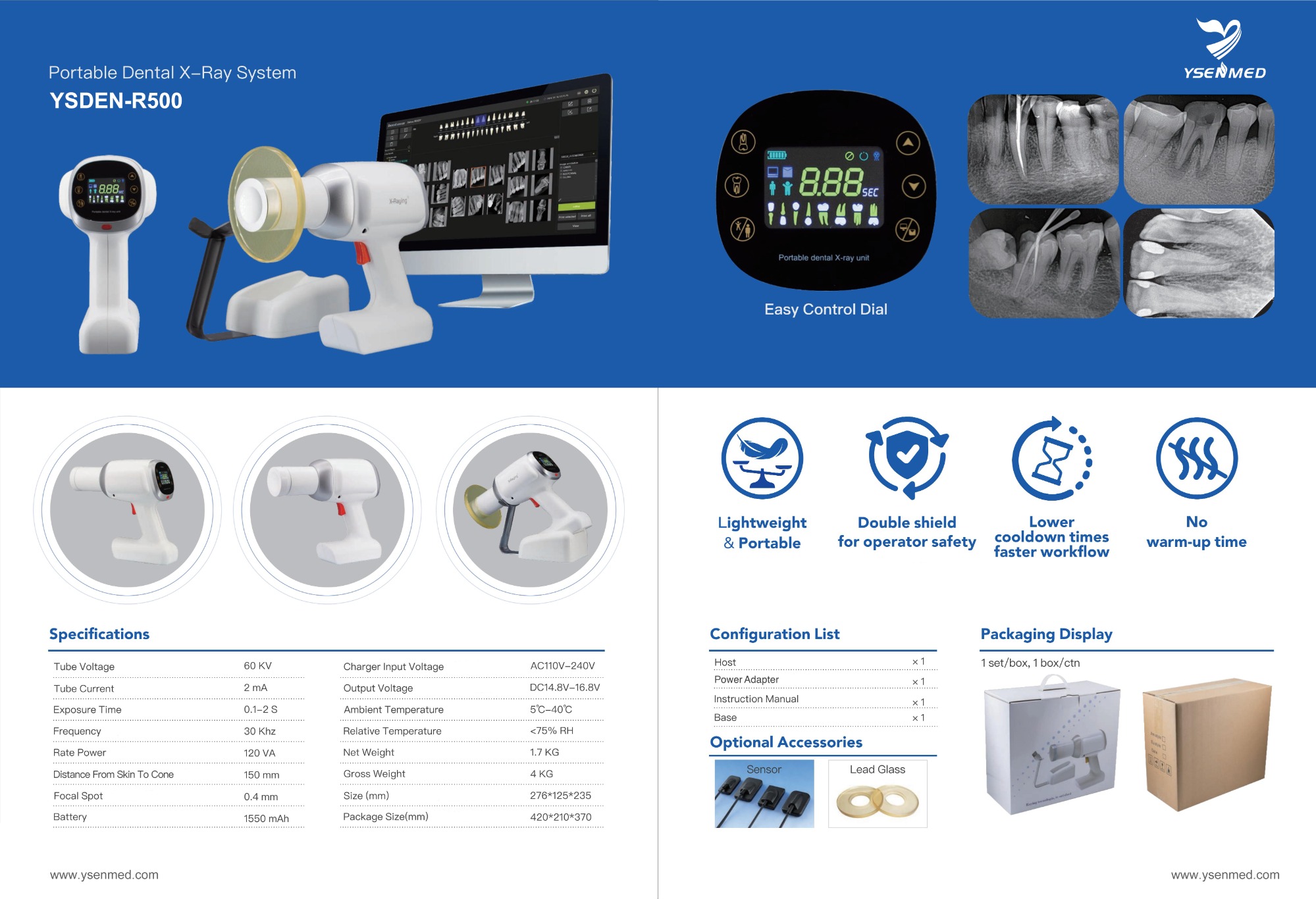

Tube voltage: 60KV
Tube current: 2.0 Ma
Exposure time: 0.1-2.0 s
Frequency: 30KHz
Rate power: 120VA
Distance from the skin to cone: 150mm
Tube focus: 0.4mm
Battery: DC1550mAh
Charger input voltage: AC100V-240V
Output voltage: DC14.8-16.8V
Gross weight: 4.0kg
Package size: 422mm×195mm×370mm

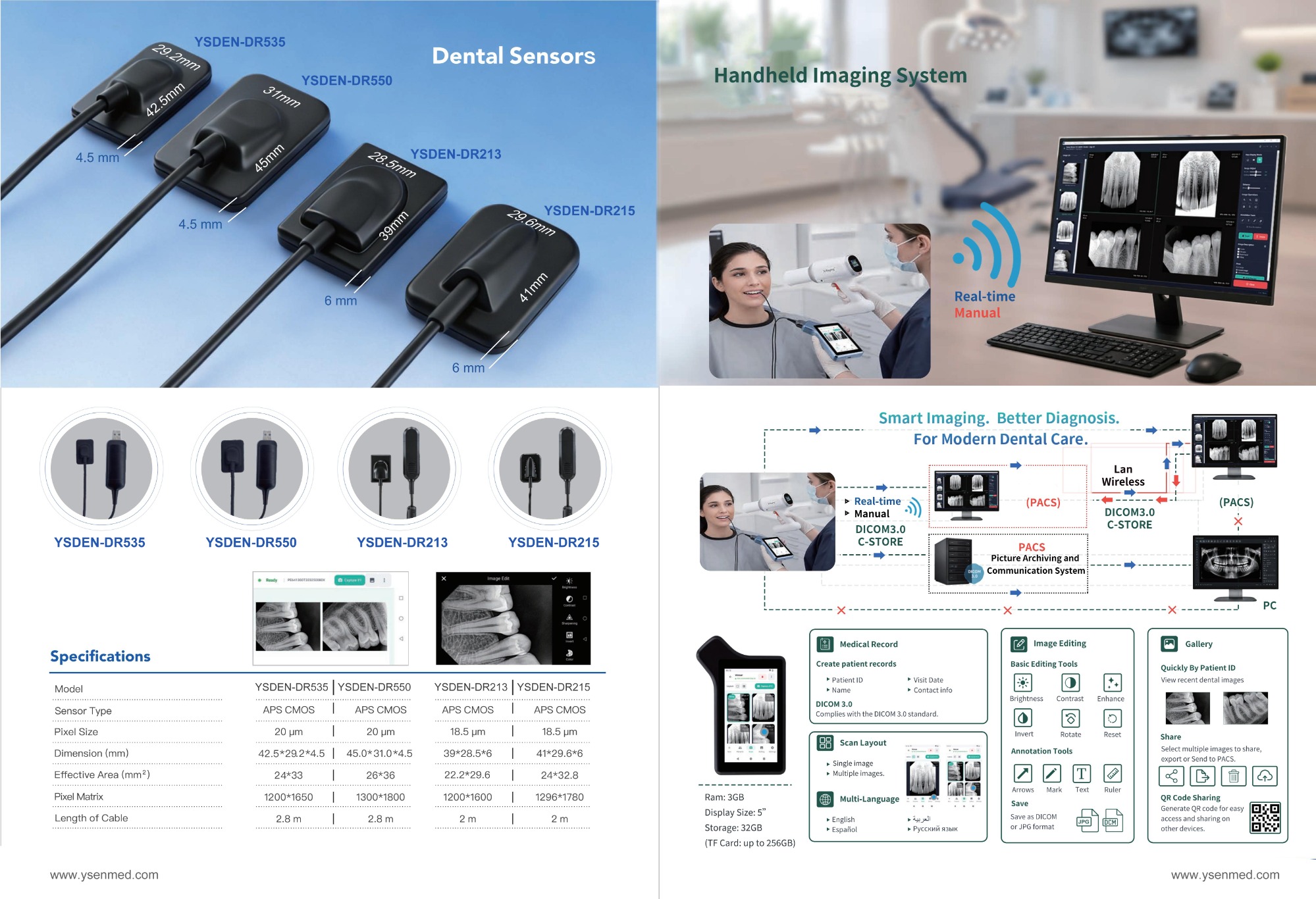

Sensor Features
* APS CMOS sensor technology
* Smart connection technology
* Suitable for all kinds of X ray machines
* Direct evaporation scintillator technology
* Ultra high sensitivity USB 2.0 interface direct connection
* Thin design, smooth angle, thumb position, humanized design
* Protection level IP68
|
TYPE |
YSDEN-DR535 |
YSDEN-DR550 |
|
Mechanical Dimension(mm³) |
42.5×29.2×4.5 |
45.0×31.0×4.5 |
|
Effective imaging area (mm²) |
24×33 |
26×36 |
|
Pixel Matrix |
(1.5M)1200×1650 |
(2.34M)1300×1800 |
|
Option color |
|
|
|
Sensor type |
APS CMOS |
|
|
Scintillator type |
DIRECT-GROWTH CESIUM IODIDE |
|
|
Cord length(m) |
Standard 2.8m |
|
|
Pixel size(μm) |
20 |
|
|
Spatial resolution (Ip/mm) |
In theory:25 Ip/mm Actual:14-16 Ip/mm(High sensitivity) 18-20 Ip/mm( high resolution) |
|
|
Gray scale |
16bits,65535 |
|
|
Exposure mode |
SMART AED mode |
|
|
Protective grade |
IP68 for Soak disinfection |
|
|
Accessory function |
Support the Twain Protocol |
|
|
Operating System |
Windows 7 and above,32/64bit |
|
Display System
Screen Size: 5”
Resolution: 720*1280
Memory: 3GB
Storage: 32GB (support TF card storage extent, max. 256GB)
Input: 5V1A
